Hydraulic PET Plastic Flower Pot Thermoforming Machine

  • 1
  • 2

Brand Name : GESTER

Model Number : HEY15B-2

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 set/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Certificate : CE, ISO

Suitable Material : PS, PET, PP

Warranty : 1 Year

Controller : PLC system

Price : Factory price

Color : Black

Contact Now

Hydraulic PET Plastic Flower Pot Thermoforming Machine

Application

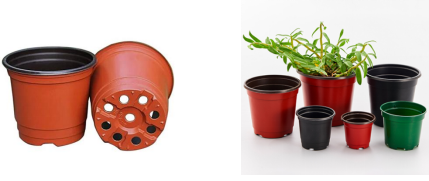

Plastic Flower Pot Thermoforming Machine is mainly for the production of variety plastic containers with holes ( flower pots, fruit containers, lids with hole, package containers, etc) with thermoplastic sheets, such as PP, PET, PS,etc.

Hydraulic PET Plastic Flower Pot Thermoforming Machine

Features

  • 55 tons of hydraulic system. Motor power with 15 levels. Hydraulic valve all made by YUKEN Japan.
  • Mechanical Arm: 1)Horizontal arm and vertical arm use 2KW servo motor; Driven with double shaft synchronous belt. 2)Slide of Taiwan brand; 3)Aluminum material;
  • The frame adopts 160*80, 100*100 square pipe welding.
  • Cast iron working table, constant type and strong impact shear force. Four columns using 45# forgings heat treatment chrome plating of diameter 75mm.
  • Delivered by chain using 3KW Vtron and RV110 reducer.
  • The method of mold: using four guide column to control the accuracy of both sides. The diameter is 100mm; Material used is 45# chromeplate.

Technical Parameter

Machine Station Forming, cutting
Mechanical Arm Punching and stacking
Max Formed Area 1200*1000 (mm2)
Max Formed Depth 280-340mm (adjustable)
Sheet Width 800-1200mm
Roll Diameter 800mm
Sheet Thickness 0.2-2.0mm
Cycle Per Minute 8-12 molds/min
Air Pressure 0.6-0.8wpa(3m³/min)
Suitable Material PP/PVC/PS/PET/HIPS
Power Consumption 48KW/Hr
Engine Power ≤210KW
Cutting Mode automatic cutting inside mold
Stretching Mode Servo ( 11KW VAXtron servo motor)
Ball crew TBI Taiwan
Total Weight 6000kg
Rack Square steel(100*100)
Dimensions L5500*W1800*H2800
Power Supply 380v/50Hz 3 phase 4 lines GB copper wire 90 ㎡

Hydraulic and Pneumatic System

Part Specification Place of Origin
Oil Pump Motor 18.5KW CHINA
Flood Valve SBSG-06G YUKEN, Japan
Reversing Valve DG-01-3C4-DC24V YUKEN, Japan
Stacked Throttle Valve VICV-02W YUKEN, Japan
Cooler XCL-526 Japan

Heating Part

Heating tile arrangement Vertical and horizontal (Length of cold roll box:3 meters)
Heating tile material Infrared ceramic heating tile(Made in Orchy)
Heating tile size 240*80 220v 650W
Heating area The temperature is divided into 14 sections and the transverse temperature is 1 section
Oven Structure Pneumatic drawer

Gas Circuit Part

Part Specification Place of Origin
Forming solenoid valve

Two-position

Three-way (1.5 inches)

 SMC, Japan
Blowing solenoid valve Two-position Three-way SMC, Japan

Electrical Part

Part Specification Place of Origin
Feeding Motor 4KW Spindle servo
Touch Screen/ PLC control MT6070i/ FX3GA-60MT

Weinview, Taiwan
Mitsubishi, Japan

Transmission Part

Chains Taiwan
Feeding reducer RV110
Winding device 0.75KW
Winding reducer NMRV063 I=30
Feeding way Motor direct transmission

Product Image

Hydraulic PET Plastic Flower Pot Thermoforming Machine
